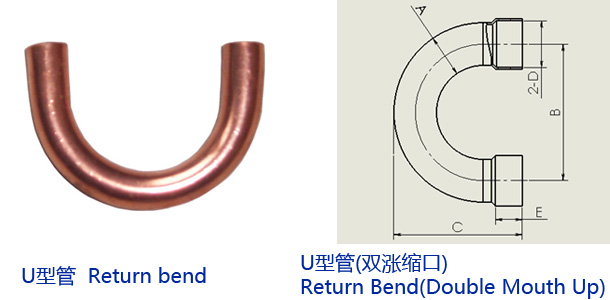

Return Bend Home | HVAC component | Copper Fittings | Return Bend

Part No. Name Material Dimensions(British System) Dimensions(Metric System) Inquiry
CU-2006 Return Bend(Double Mouth Up) Copper 1/4' 6
CU-2008 Return Bend(Double Mouth Up) Copper 5/16' 8
CU-2010 Return Bend(Double Mouth Up) Copper 3/8” 10
CU-2013 Return Bend(Double Mouth Up) Copper 1/2“ 13
CU-2016 Return Bend(Double Mouth Up) Copper 5/8” 16
CU-2019 Return Bend(Double Mouth Up) Copper 3/4“ 19
CU-2029 Return Bend(Double Mouth Up) Copper 1-1/8' 29
CU -2035 Return Bend(Double Mouth Up) Copper 1-3/8' 35
CU -2041 Return Bend(Double Mouth Up) Copper 1-5/8' 41
CU-2054 Return Bend(Double Mouth Up) Copper 2-1/8' 54
CU -2067 Return Bend(Double Mouth Up) Copper 2-5/8 67
CU -2079 Return Bend(Double Mouth Up) Copper 3-1/8 79
CU -0006 Return Bend Copper 1/4' 6
CU -0008 Return Bend Copper 5/16' 8
CU -0010 Return Bend Copper 3/8” 10
CU -0013 Return Bend Copper 1/2“ 13
CU -0016 Return Bend Copper 5/8” 16
CU -0019 Return Bend Copper 3/4“ 19
CU -0029 Return Bend Copper 1-1/8' 29
CU -0035 Return Bend Copper 1-3/8' 35
CU -0041 Return Bend Copper 1-5/8' 41
CU -0054 Return Bend Copper 2-1/8' 54
CU -0067 Return Bend Copper 2-5/8 67
CU -0079 Return Bend Copper 3-1/8 79
